Our ZW-ZX series 3D wire bending machines, also known as automatic metal wire forming machines, cover a full range of models including ZW-ZX560/660, ZW-ZX580/680, ZW-ZX5100/6100, ZW-ZX860/960/880/980 and ZW-ZX8100/9100. These multi-axis servo wire bending equipment are professionally built for mass processing of stainless steel wire, iron wire and spring steel wire, delivering high-precision 2D & 3D wire shaping for automotive hardware, furniture wire frames and industrial metal wire parts. Each wire former comes with complete standardized technical parameters, stable Windows control system and unlimited wire feeding length to meet diverse large-batch metal wire production demands worldwide.
ZW-ZX860/960/880/980
ZW-ZX8100/9100
ZW-ZX560/660
ZW-ZX580/680
ZW-ZX5100/6100
| Equipment Model | ZW-ZX860/960 | ZW-ZX880/980 | ZW-ZX8100/9100 | ZW-ZT560/660 | ZW-ZT580/680 | ZW-ZT5100/6100 | ZW-ZT5120/6120 |
| Applicable Wire | Steel Wire | Steel Wire | Steel Wire | Iron Wire | Iron Wire | Iron Wire | Iron Wire |
| Wire Diameter Range | Φ2.0-6.0 mm | Φ3.0-8.0 mm | Φ4.0-10.0 mm | Φ2.5-6.0 mm | Φ3.0-8.0 mm | Φ4.0-10.0 mm | Φ5.0-12.0 mm |
| Max. Product Size | 800×800 mm | 800×800 mm | 1100×1100 mm | 550×550 mm | 600×600 mm | 800×800 mm | 850×850 mm |
| Max. Product Turning Length | – | – | – | 500 mm | 600 mm | 800 mm | 800 mm |
| Max. Wire Feeding Command Value | 10000.00 mm | 10000.00 mm | 10000.00 mm | 10000.00 mm | 10000.00 mm | 10000.00 mm | 10000.00 mm |
| Min. Wire Feeding Command Value | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Max. Wire Feeding Speed | 70 m/min | 70 m/min | 70 m/min | 70 m/min | 70 m/min | 70 m/min | 70 m/min |
| Max. Wire Feeding Length | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform Trip | 200 mm | 200 mm | 200 mm | – | – | – | – |
| Number of Axes | 8 Axis, 9 Axis | 8 Axis, 9 Axis | 8 Axis, 9 Axis | 5 Axis, 6 Axis | 5 Axis, 6 Axis | 5 Axis, 6 Axis | 5 Axis, 6 Axis |
| Total Output Power of Servo Motors | 15.6 KW、18.3 KW | 21 KW、25.5 KW | 22.8 KW、27.3 KW | 9 KW、10.2 KW | 11.1 KW、12.4 KW | 14.8 KW、17.2 KW | 18.3 KW、21 KW |
| Input Power Supply | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH |
| Control System | Windows | Windows | Windows | Windows | Windows | Windows | Windows |
| Program Storage Capacity | 2000 plus | 2000 plus | 2000 plus | 2000 plus | 2000 plus | 2000 plus | 2000 plus |
| Compressor Air Pressure | 5-6 KG/cm² | 5-6 KG/cm² | 5-6 KG/cm² | 5-6 KG/cm² | 5-6 KG/cm² | 5-6 KG/cm² | 5-6 KG/cm² |
| Overall Length | 3700 mm | 4000 mm | 4400 mm | 2600 mm | 2600 mm | 3000 mm | 3000 mm |
| Overall Width | 1800 mm | 1800 mm | 1800 mm | 1060 mm | 1060 mm | 1160 mm | 1160 mm |
| Overall Height | 2000 mm | 2000 mm | 2000 mm | 1800 mm | 1800 mm | 1850 mm | 1850 mm |
| Net Weight | 1500 KG | 2000 KG | 2500 KG | 1500 KG | 1500 KG | 2000 KG | 2000 KG |
| Decoiler Load Weight | – | – | – | 500 KG | 700 KG | 1000 KG | 1500 KG |
ZW-ZX Series 3D CNC Wire Bending Machines
Our ZW-ZX series fully automatic 3D wire bending machines are multi-axis servo metal wire forming equipment, specially designed for mass production of all kinds of 2D & 3D metal wire components. We provide a complete model lineup covering small compact to heavy-duty large machines, compatible with stainless steel wire, iron wire, spring steel wire for automotive, hardware, furniture and daily hardware industries.
All Machine Models Introduction
1. ZW-ZX560 / ZW-ZX660 Mini Wire Bender
Compact small-size wire forming machine with 6/8 axes, fits wire diameter from 0.3mm to 6.0mm. Light weight, small footprint, ideal for small precision wire brackets, spring clips and miniature wire parts.
2. ZW-ZX580 / ZW-ZX680 Standard Wire Forming Machine
8/9-axis servo control, stable performance for 0.5–6.0mm wire. Balanced size and output, the most popular model for general hardware wire bending mass production.

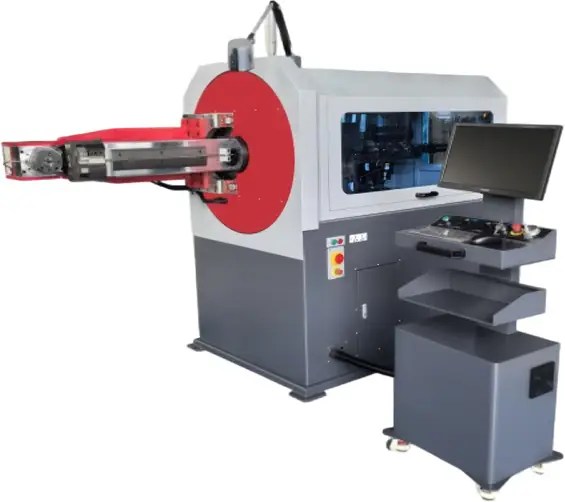

3. ZW-ZX5100 / ZW-ZX6100 Long Stroke Wire Bending Machine
Extended platform trip for long-size wire products, wire range up to 12.0mm. Suitable for long brackets, automotive wire frames and large 3D wire assemblies.

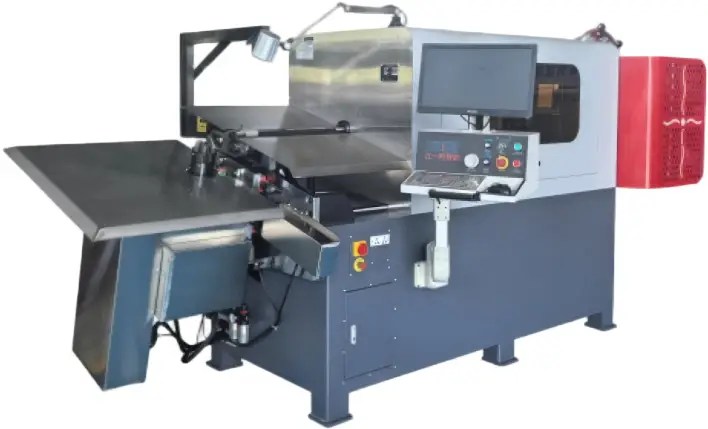

4. ZW-ZX860 / ZW-960 / ZW-880 / ZW-980 Medium Duty Wire Bender
Medium heavy-duty forming equipment, max product size up to 800mm, powerful servo motor for thick stainless steel wire bending, stable continuous running for factory mass production.
5. ZW-ZX8100 / ZW-ZX9100 Heavy-Duty Wire Forming Machine
Top model for thick large wire parts, maximum wire diameter reaches 12mm, ultra-long wire feeding length, perfect for construction hardware, big automotive wire components.
Core Machine Advantages
- Multi-Axis Synchronous Servo: 6–9 optional servo axes, high bending precision, stable forming tolerance ±0.01mm
- Unlimited Wire Feeding Length: Support ultra-long wire raw material without cutting limitation
- Large Program Storage: Store over 2000 sets of bending programs for fast model switching
- Wide Material Compatibility: Works with iron wire, stainless steel wire, spring steel wire within different wire diameters
- Windows Operating System: Intuitive touch screen programming, easy operation for new workers
- Stable Industrial Structure: Thickened machine frame, low failure rate, long service life
Technical Parameter Overview
The comparison table below lists all core specifications of ZW-ZX wire bending series, including applicable wire range, axes number, servo power, machine dimension, net weight and working environment requirements. All machines adopt standard AC380V three-phase industrial voltage, matching most global factory power supply standards.
Application & Factory Service
Our CNC wire bending machines widely produce wire brackets, spring clips, furniture wire frames, automotive wire parts, kitchen hardware, craft wire ornaments and mechanical wire accessories.
We support OEM & ODM customization, free technical drawing consultation, overseas machine operation training and full after-sales maintenance service. Contact us to get detailed model quotation and wire forming solution.
