ZW series automatic feeding machine is the matched auxiliary equipment for CNC spring coiling machines and multi-axis wire formers.
This automatic spring wire decoiler is supporting auxiliary equipment for CNC spring coilers and CNC wire forming machines. It is composed of a wire storage tray, machine base, drive motor, gear reducer, frequency inverter, sensor switches and electrical relays. Equipped with both automatic continuous operation and manual jog adjustment modes, it maintains perfect speed synchronization with the main machine to stabilize wire feeding speed. Built-in alarm sensors will immediately notify operators and stop the machine automatically in cases of wire tangling or material exhaustion. Featuring intuitive operation and high working efficiency, this device greatly optimizes the overall production workflow.
| Model | ZW-60 | ZW-100 | ZW-200 | ZW-500 | ZW-1000 |
| Carrying Weight | 60kg | 100kg | 200kg | 500kg | 1000kg |
| Max.Speed Of Table | 150rpm | 120rpm | 60rpm | 50rpm | 45rpm |
| Max.Outsede Table | Φ600mm | Φ800mm | Φ1100mm | Φ1300mm | Φ1500mm |
| Motor | 0.37kw | 0.37kw | 0.75kw | 1.5kw | 2.2kw |
| Dimension(L*W*H) | 650*650*750mm | 800*850*800mm | 1300*1300*900mm | 1600*1500*1500mm | 2400*2000*1500mm |
| Weight | 65kg | 80kg | 130kg | 250kg | 500kg |
| Power AC | 220V 50/60hz | 220V 50/60hz | 220V 50/60hz | 220V 50/60hz | 380V 50/60hz |
ZW series automatic feeding machine is the matched auxiliary equipment for CNC spring coiling machines and multi-axis wire formers.
It is assembled with wire tray, base frame, driving motor, gear reducer, frequency inverter, sensor switches, relays and complete electrical control parts.
It supports two operation modes: Auto continuous running & Jog manual adjustment. Its running speed synchronizes perfectly with the main spring machine to stabilize wire feeding speed.
Built-in intelligent detection sensors will trigger alarm signals and stop the machine automatically once wire breakage, wire tangling or raw material depletion occurs. Featuring simple operation, reliable safety protection and boosted workshop production efficiency, this decoiler is an essential supporting device for spring manufacturing factories.
1.ZW-60 / ZW-100 Automatic Feeding Machine
Compact small-load wire decoiler for miniature thin wire spring production, light weight and easy to move, ideal for small precision spring workshops.

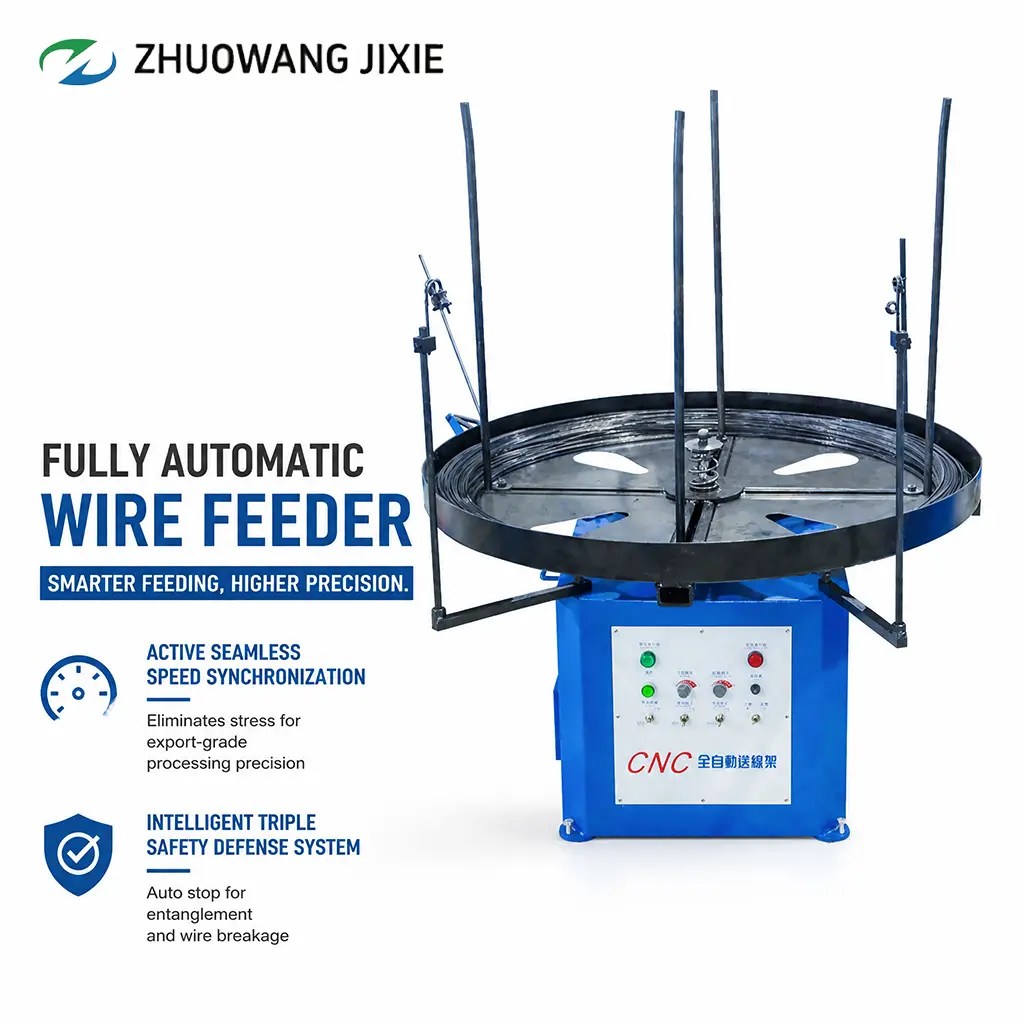

2.ZW-200 / ZW-300 Automatic Feeding Machine
Medium-capacity wire feeding stand, balanced load capacity and footprint, widely matched with standard 3/4 axis CNC spring forming machines.
3.ZW-500 / ZW-800 / ZW-1000 Automatic Feeding Machine
Heavy-duty large-load wire decoiler, stable heavy wire tray structure, designed for thick wire, large batch spring production with long running cycles.
| Item Name | ZW-60 | ZW-100 | ZW-200 | ZW-500 | ZW-1000 |
|---|---|---|---|---|---|
| Carrying Weight | 60kg | 100kg | 200kg | 500kg | 1000kg |
| Max. Speed Of Table | 150rpm | 120rpm | 60rpm | 50rpm | 45rpm |
| Max. Outside Table Diameter | Φ600mm | Φ800mm | Φ1100mm | Φ1300mm | Φ1500mm |
| Motor Power | 0.37kw | 0.37kw | 0.75kw | 1.5kw | 2.2kw |
| Dimension(LWH) | 650650750mm | 800850800mm | 13001300900mm | 160015001500mm | 240020001500mm |
| Net Weight | 65kg | 80kg | 130kg | 250kg | 500kg |
| Power Supply AC | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 380V 50/60Hz |
1.Dual Operation Modes: Auto continuous production mode and Jog manual adjustment mode, convenient for mold testing and mass production switching.
2.Real-Time Speed Synchronization: Automatically matches running speed with the connected CNC spring machine to avoid wire stretching or loosening.
3.Multi-Safety Alarm System: Auto stop & sound alarm for wire break, wire tangling and wire material runout, reducing defective products and equipment damage.
4.Frequency Conversion Speed Regulation: Stable variable-speed control, smooth wire release without vibration, protecting wire surface from scratches.
5.Complete Model Coverage: 5 models from 60kg to 1000kg load capacity, matching miniature thin wire to heavy thick wire spring production lines.
6.Simple Control Panel: Intuitive button layout, no complex training required for operators to master daily operation quickly.
1.Perfect Matching for All Our Spring Machines All ZW decoilers are tailor-made to pair with Zhuowang CNC spring forming machines, realizing seamless signal linkage and synchronized operation.
2.Stable Heavy-Duty Mechanical Structure Thickened steel base and reinforced wire tray frame, anti-shake design ensures long-term stable running under full load. Intelligent Safety
3.Protection System Multi-scenario auto-stop alarm function prevents wire waste, machine collision and unexpected failures during unattended production.
4.Flexible Customizable Options We provide customized table size, motor power and power supply voltage to meet special production requirements of overseas clients.
5.Factory Direct Supply & Global After-Sales Original manufacturer supply, we offer remote operation training, spare parts supply and lifetime technical support for global spring manufacturers.
