Zhuowang ZW-BH15 & ZW-BH25 professional CNC wave spring machines with 6 servo axes, Windows control system, wire range 0.2–5mm, max feeding speed 100m/min, high precision for flat wave spring, multi-layer wave ring mass production. 2000+ program storage, stable servo power for automotive & hardware manufacturing.

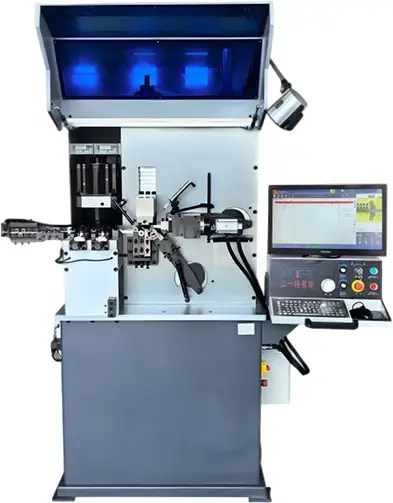

ZW-BH15

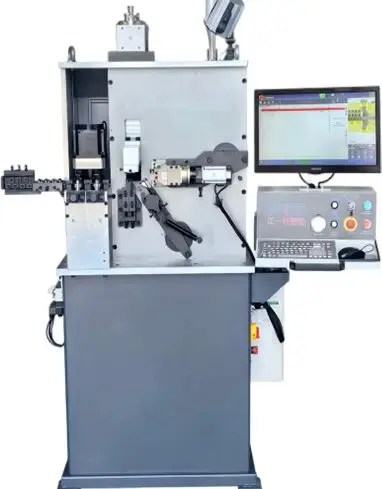

ZW-BH25
Our ZW-BH15 and ZW-BH25 are dedicated 6-axis CNC wave spring forming machines professionally developed for mass production of flat wave springs, multi-turn wave rings and metal wave retaining rings. Equipped with full servo drive structure and Windows intelligent operating system, they deliver ultra-high dimensional accuracy and stable continuous running performance.
Two models cover different wire processing ranges: ZW-BH15 for thin wire (0.2–3.5mm), ZW-BH25 for thick wire (0.3–5mm). The machine supports unlimited wire feeding length with a maximum feeding speed of 100 m/min, and can store over 2000 sets of forming programs to switch different wave spring products quickly. Widely applied in automotive sealing, electronic components, valve hardware, bearing accessories and mechanical sealing industries.
| Technical Parameter | ZW-BH15 | ZW-BH25 |
| Wire Diameter Range | 0.2×0.8 – 0.5×3.5 mm | 0.3×1 – 1×5 mm |
| Max. Wire Feeding Value | 10000.00 mm | 10000.00 mm |
| Min. Wire Feeding Value | 0.01 mm | 0.01 mm |
| Max. Wire Feeding Speed | 100 m/min | 100 m/min |
| Max. Wire Feeding Length | Unlimited | Unlimited |
| Number of Axes | 6 | 6 |
| Total Output Power of Servo Motors | 4.6 KW | 10.05 KW |
| Input Power Supply | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH |
| Operating System | Windows | Windows |
| Program Storage Capacity | 2000 plus | 2000 plus |
| Air Pressure | 5~6 KG/cm² | 5~6 KG/cm² |
| Number of Probes | 1 Pcs | 1 Pcs |
| Overall Length | 1200 mm | 1400 mm |
| Overall Width | 900 mm | 900 mm |
| Overall Height | 1800 mm | 2000 mm |
| Net Weight | 600 KG | 900 KG |
1.Independent 6 Servo Axis Structure 6 fully independent servo axes realize fully automatic one-step forming of complex wave springs, no secondary manual processing required, greatly improving production efficiency.
2. Windows Intelligent Operation Platform Adopts Windows operating system with intuitive graphical programming interface, easy to edit, preview and save spring forming programs, friendly for overseas operators.
3.Ultra-Wide Wire Feeding Control Range Min feeding resolution up to 0.01mm, max feeding speed reaches 100m/min, unlimited effective feeding length to meet long strip wire forming demands.
4.Large-Capacity Program Storage Stores more than 2000 groups of product programs, one-click recall to switch different wave spring specifications, reducing mold change downtime.
5.Stable Pneumatic Auxiliary System Standard air pressure working range of 5~6 KG/cm², matched with precision detection probe to ensure consistent wave spring size and reduce defective rates.
6.Two Models for Diversified Production ZW-BH15 low-power compact model for miniature thin wire wave springs; ZW-BH25 high-power heavy-duty model for thick wire, large outer diameter wave ring production.
| Technical Parameter | ZW-BH15 | ZW-BH25 |
|---|---|---|
| Wire Diameter Range | 0.2×0.8 – 0.5×3.5 mm | 0.3×1 – 1×5 mm |
| Max. Wire Feeding Value | 10000.00 mm | 10000.00 mm |
| Min. Wire Feeding Value | 0.01 mm | 0.01 mm |
| Max. Wire Feeding Speed | 100 m/min | 100 m/min |
| Max. Wire Feeding Length | Unlimited | Unlimited |
| Number of Axes | 6 axes | 6 axes |
| Total Output Power of Servo Motors | 4.6 KW | 10.05 KW |
| Input Power Supply | AC380V/50Hz/60Hz/3PH | AC380V/50Hz/60Hz/3PH |
| Operating System | Windows | Windows |
| Program Storage Capacity | 2000 plus programs | 2000 plus programs |
| Working Air Pressure | 5~6 KG/cm² | 5~6 KG/cm² |
| Number of Probes | 1 Pcs | 1 Pcs |
| Overall Length | 1200 mm | 1400 mm |
| Overall Width | 900 mm | 900 mm |
| Overall Height | 1800 mm | 2000 mm |
| Net Weight | 600 KG | 900 KG |
This dedicated wave spring forming machine is specially designed to produce all types of metal wave springs:
- Flat single-turn wave springs
- Multi-layer nested wave rings
- Bearing sealing wave washers
- Automotive shock-absorbing wave springs
- Precision electronic contact wave shims
- Valve & mechanical sealing wave components
Professional Custom Design for Wave Spring Production
Unlike general multi-purpose spring forming machines, this BH series is exclusively engineered for wave spring manufacturing. Optimized feeding tracks and forming tool structure deliver smoother wave curve molding and fewer defective products.
High-Precision 6 Independent Servo Axes
All 6 axes are driven by separate servo motors, with a minimum feeding resolution of 0.01 mm. It guarantees uniform wave height, stable ring diameter and consistent dimensional tolerance for every finished wave spring.
User-Friendly Windows Operating System
Equipped with mature Windows visual programming software, no complicated coding skills required. Operators can edit, preview, save and call forming programs quickly with short training cycles.
Dual Models Cover Full Wire Range
Two configurations meet diverse production demands: ZW-BH15 for thin micro wire wave springs, ZW-BH25 high-power model for thick wire & large-size wave rings, supporting both small-batch sampling and mass manufacturing.
Complete Factory Technical Support
We are original spring machine manufacturer. Free custom forming molds, wave spring program debugging, remote online operation training and long-term spare parts supply are available for global clients.
