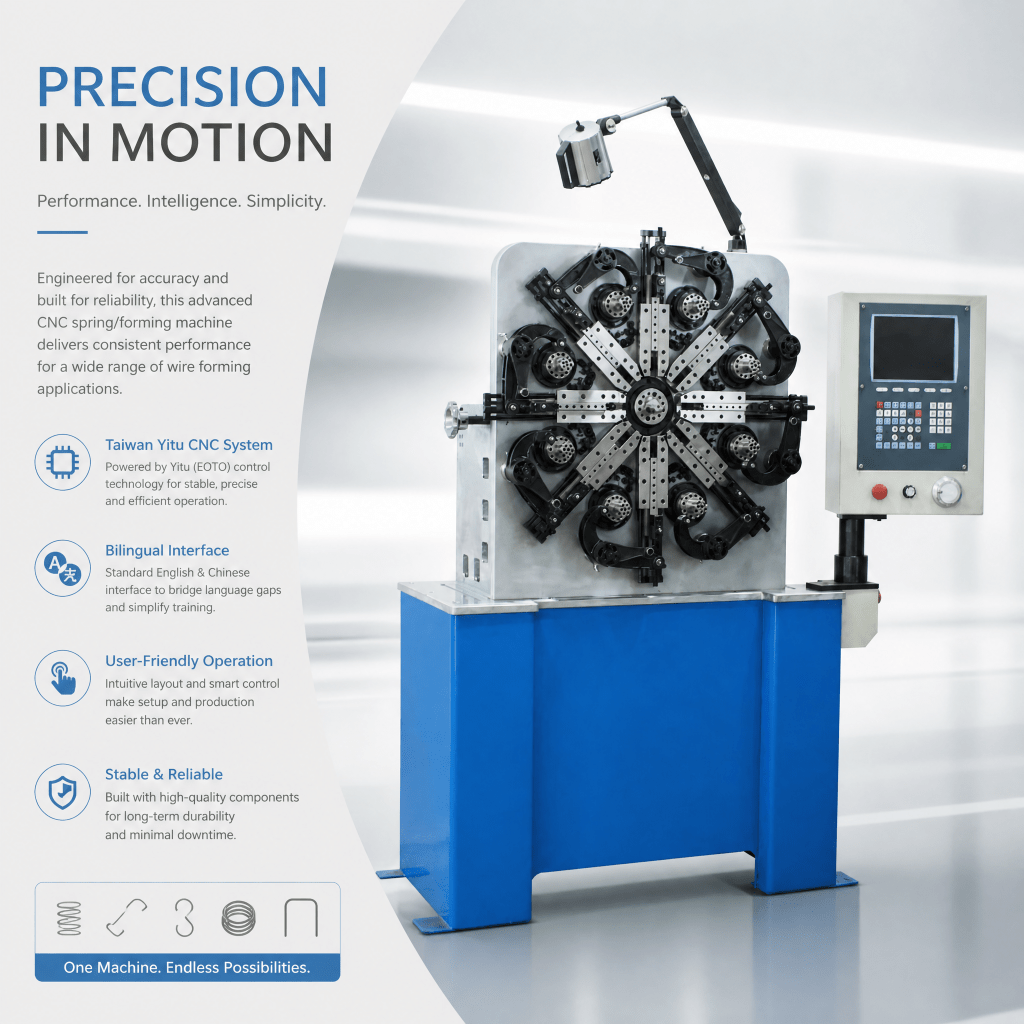

The ZW-CNC20 and ZW-CNC35 3/4-axis CNC universal spring formers adopt Taiwan CNC controller and Japanese industrial servo motors. Standard configuration includes Cam X axis, Wire Feeding Y axis and Quill Z axis; an extra Spinner U axis is optional as the 4th axis. All servo axes can be programmed via computer instructions to realize synchronous or asynchronous movement, supporting precise 24-hour non-stop running. Two models cover wire diameter from 0.2mm to 4.0mm, widely used for producing compression springs, torsion springs, retaining rings, wave springs and special-shaped wire components.
| Description |
| CNC20/35 spring former is consisted of one cam X axis, one wire feeding Y aixs, one quill Z axis, and it is optional to have one spinner U axis. |
| 1. Adopt HUST servo control system and full digital drive. |
| 2. X axis can move clock-wisely or counter clock-wisely. |
| 3. Computer automatically detect and decelerate servo motor when it is overheating. |
| 4. Wire feed length and production rate can be increased or decreased during machine operation |
| 5. Probe deceleration ratio function adopted. |
| Item Name | ZW-CNC20 | ZW-CNC35 |
| Axis Count | 3 | 3 |
| Wire Diameter | Φ0.2–2.3mm | Φ1.5–4.0mm |
| Max.Outside Diameter | Φ40mm | Φ70mm |
| Production Rate | 0–100pcs/min | 0–80pcs/min |
| Cam Speed | 0–100rpm | 0–70rpm |
| Feeding Wheel Count | 2Pairs | 3Pairs |
| Feeding Servo Motor | 2.7kw | 5.5kw |
| Cam Servo Motor | 2.7kw | 4.5kw |
| Quill Servo Motor | 0.75kw | 1.0kw |
| Spinner Servo Motor | 0.75kw(Optional) | 1.0kw(Optional) |
| Monitor Display | Chinese & English | Chinese & English |
| Feeding Setting Value | Y:0.01–99999.99mm | Y:0.01–99999.99mm |
| Cam Setting Value | X:0.1–359.9° | X:0.1–359.9° |
| Storage Capacity | 1000 programs | 1000 programs |
| Dimension(L*W*H) | 1500*1100*1700mm | 1750*1300*1850mm |
| Weight | 900kg | 1300kg |
| Power AC | 3P–380V 50/60hz | 3P–380V 50/60hz |
Our ZW-CNC20 and ZW-CNC35 3/4-axis CNC universal spring forming machines are professional wire forming equipment independently developed by Zhuowang Machinery. Each unit is equipped with Taiwan HUST CNC controller and high-performance Japanese industrial servo motors.
Standard configuration includes 3 servo axes: Cam X axis, Wire Feeding Y axis and Quill Z axis. Customers can choose an extra Spinner U axis as the 4th axis for complicated spring processing. All axis movements can be programmed via system instructions to realize synchronous or asynchronous operation, enabling stable round-the-clock production.
The two models cover wire diameters ranging from 0.2mm to 4.0mm. They are widely applied to manufacture compression springs, torsion springs, retaining rings, wave springs and various special-shaped wire components for automotive, electronics, medical hardware and daily hardware industries.
Machine Advantages
- Full digital HUST servo control system with matched digital servo drivers, delivering fast response and ultra-high spring forming precision.
- Industrial control panel with Chinese & English bilingual interface. The operation logic is simple and intuitive, new operators can get familiar with the machine quickly without long training.
- Bidirectional rotation design for Cam X axis. Operators can increase or decrease wire feeding length directly while the machine keeps running without shutdown.
- Intelligent servo motor overheat protection. The system will automatically detect motor temperature and reduce running speed to avoid component burnout during high-speed mass production.
- Built-in probe deceleration ratio function, which effectively stabilizes the finished size of irregular and complex wire forms.
- Flexible adjustable production rate. Output can be modified at any time during production, and the control system will update all operation parameters automatically.
- Optional 4th Spinner U axis: realizes one-step molding of intricate wave springs and multi-bend wire workpieces, greatly improving production efficiency for complex products.
Technical Specifications
| Item Name | ZW-CNC20 | ZW-CNC35 |
|---|---|---|
| Axis Count | 3 axes (4th U axis optional) | 3 axes (4th U axis optional) |
| Processing Wire Diameter | Φ0.2–2.3mm | Φ1.5–4.0mm |
| Max Outside Spring Diameter | Φ40mm | Φ70mm |
| Production Rate | 0–100pcs/min | 0–80pcs/min |
| Cam Rotation Speed | 0–100rpm | 0–70rpm |
| Feeding Wheel Groups | 2 Pairs | 3 Pairs |
| Feeding Y Servo Motor | 2.7kw | 5.5kw |
| Cam X Servo Motor | 2.7kw | 4.5kw |
| Quill Z Servo Motor | 0.75kw | 1.0kw |
| Spinner U Servo Motor (Optional) | 0.75kw | 1.0kw |
| Monitor Display | Chinese & English Bilingual Screen | Chinese & English Bilingual Screen |
| Wire Feeding Setting Range | Y:0.01–99999.99mm | Y:0.01–99999.99mm |
| Cam Angle Setting Range | X:0.1–359.9° | X:0.1–359.9° |
| Program Storage Capacity | 1000 Programs | 1000 Programs |
| Overall Dimension (LWH) | 150011001700mm | 175013001850mm |
| Net Weight | 900kg | 1300kg |
| Power Supply | 3P–380V 50/60Hz | 3P–380V 50/60Hz |
Application Industries & Products
This CNC universal spring forming machine is suitable for mass production of various metal wire parts:
- Automotive parts: suspension springs, small torsion springs, snap rings
- Electronic hardware: contact springs, miniature compression springs, shrapnel
- Medical equipment: precision stainless steel wire forms
- Daily hardware: toy springs, furniture connecting wire parts
- Hardware fasteners: circlips, special bending wire components
Our Strengths
- Independent R&D & Manufacturing: We are a professional factory focusing on CNC spring forming machines, with mature production and quality inspection systems.
- Stable Core Components: Adopt famous brand servo motors and HUST control system, low failure rate and long service life.
- Customizable Solution: Support optional 4th U axis and customized mold tools according to customers’ spring drawings.
- Global After-sales Support: Provide remote online debugging, operation training and spare parts supply for overseas clients.
- 24-Hour Continuous Operation Design: Optimized mechanical structure to meet long-time mass production demands of factories.
1.Mature 3/4-Axis Servo Drive Structure
Equipped with standard X/Y/Z three servo axes, optional 4th spinner U axis, all movements controlled by independent servo motors to realize synchronous & asynchronous forming, supporting 24-hour non-stop stable production.
2.Reliable HUST Full Digital Servo Control System
Adopt Taiwan HUST industrial controller and full digital servo drivers, with fast response, high forming accuracy and stable operation. The bilingual Chinese & English touch screen simplifies operation for global operators.
3.Intelligent Self-Protection & Adjustable Running Status
Built-in servo motor overheat auto-deceleration protection, probe deceleration function, and real-time adjustable wire feeding length & production speed without machine shutdown, effectively reducing defective products and extending equipment service life.
4.Two Models Cover Different Wire Processing Needs
ZW-CNC20 for thin wire of 0.2–2.3mm, ZW-CNC35 for thick wire of 1.5–4.0mm. Different feeding wheel groups and power configurations match diversified spring production demands, from tiny precision springs to large industrial wire forms.
5.Large Program Storage & Wide Parameter Setting Range
Stores up to 1000 sets of spring forming programs. Ultra-wide wire feeding and cam angle adjustment range supports various custom torsion springs, compression springs, wave springs and special bent wire parts.
6.Factory Direct Supply with Customizable Configuration
We are original machinery manufacturer. The 4th U spinner axis can be optionally installed based on your product drawings. We also provide customized forming tools and free technical program debugging for overseas buyers.
7.Complete Global After-Sales Support
Offer remote online training, video operation guidance, long-term spare parts supply and overseas technical service. All machine parameters are standardized for easy maintenance by local technicians.
